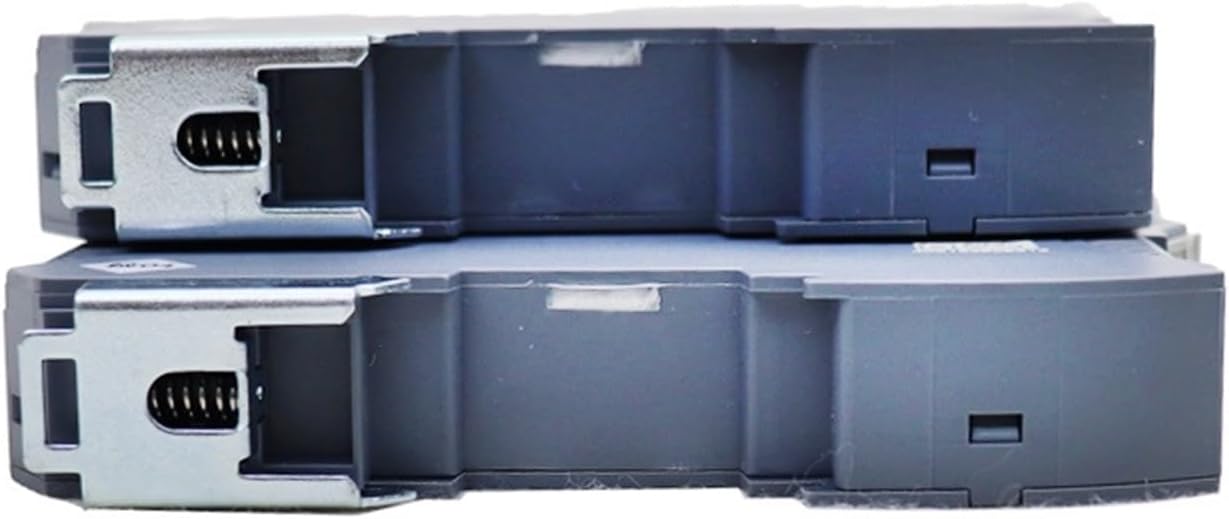

Voltage Signal Isolation 4-20mA Input Output DC Signal Converter Loop Isolator Current (Color : 1-5V in, Size : 1 in 2 Out_1-5V Output)

Mainly technical parameters:4-20ma signal generatorTransmitting accuracy0.1%F.S(252)Rise time0.2 msSettling time2 msInfluence of ambient temperature<;30 ppm/Ripple<;1 mVFrequency range0300 HzInput resistance:current60 voltage05V:1M; 010V:2MOutput load capacity:DC current:010mA700420mA350010mA1k020mA500DC voltage:0(1)5V1M010V2M05V1M010V2MPlease specify your requirements before order if greater output load capacity is needed.Power supply voltage range:1832V DC (Recommended voltage:24V DC)85265V AC(OR 120360V DC)Power consumptionSingle outputDouble output24V DC0.4W0.6W220V AC1.0VA1.2VAInsulation resistance100 M (Input /Output /Power)Dielectric strength1500 V AC (Input /Output /Power,1mA leakage current, 1 minute test time)Electromagnetic compatibilityIEC 61000-4Panel light indication:Light indicatingPWR (green) remains shining during normal operation;

• Signal Isolator Transmitter:Signal isolation converters are widely used in industrial equipment, such as large motors, power grid equipment.
• 3-in-1 design Signal Isolator: can be used as an integrated intelligent temperature transmitter, isolator, distributor.
• Installation: DIN-rail mounting.
• smaller installation space, better anti-interfere ability.
• Quality Material : The current regulator is made of high-quality electronic components with high precision, built-in multiple safety protection functions and safe to use.
